Description

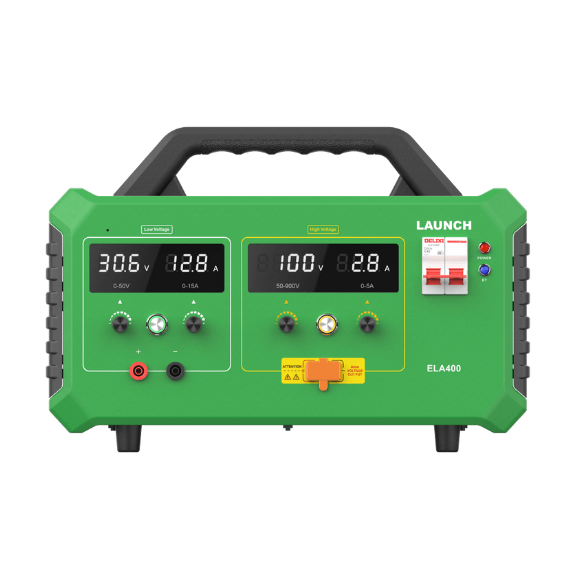

The ELA400 is an intelligent digital power supply suitable for both EV vehicles and fuel-powered vehicles maintenance. With a high voltage output range of 50V-900V, the ELA400 is designed to support a wider range of high-voltage electrical offline driving and maintenance testing scenarios.
Features:
- Applicable to all new energy and fuel vehicle maintenance scenarios.
- The high-voltage module and the low-voltage module are independent of each other, with each module providing separate protection during power output without affecting each other.
- Low Voltage Output supports 0V-50V, 0A-15A DC output, adjusting via a knob.
- The input circuit, high-voltage output circuit, and low-voltage output circuit all have independent protection mechanisms, capable of detecting undervoltage, overvoltage, overcurrent, and short circuit faults, and implementing corresponding protective measures.
- High Voltage Output includes current limiting and short circuit protection and supports 50V-900V, 0A-5A DC output, adjusting via a knob.
Specification:
| POWER INPUT | AC100~240V@20A |
| HIGH VOLTAGE OUTPUT | Voltage: 50~900V |
| Current: 0~5A | |
| LOW VOLTAGE OUTPUT | Voltage: 0~50V |
| Current: 0~15A | |
| FRONT PANEL | HIGH VOLTAGE: |
| Voltage adjustment knob, Current adjustment knob, High voltage switch button | |
| LOW VOLTAGE: | |
| Current adjustment knob, Voltage adjustment knob, Low voltage start/stop button | |
| COMMUNICATION | Bluetooth |
| DISPLAY MODE | LED Digital Tube |
| PROTECTION | Current limiting, short circuit protection, undervoltage protection, overvoltage protection, overtemperature protection, etc |
| WORKING TEMPERATURE | -10~65°C |
| DIMENSIONS | 395*315*265 (mm) |
| WEIGHT | 11Kg |
|
SAFETY TEST |
||
|
INSULATION RESISTANCE |
AC INPUT-CASE |
DC1000V，≥10MΩ(room temperature) |
|
DC OUTPUT-CASE |
DC1000V，≥10MΩ(room temperature) |
|
|
AC INPUT-DC OUTPUT |
DC1000V，≥10MΩ(room temperature) |
|
|
WITHSTAND VOLTAGE TEST |
AC INPUT-CASE |
AC2000V，50Hz，≤10mA，60S |
|
DC OUTPUT-CASE |
AC2000V，50Hz，≤10mA，60S |
|
|
AC INPUT-DC OUTPUT |
AC2000V，50Hz，≤10mA，60S |
|
|
WORKING ENVIRONMENT |
|
|
WORKING TEMPERATURE |
-10~65°C |
|
WORKING ENVIRONMENT HUMIDITY |
5~95% relative humidity (no condensation) |
|
STORAGE TEMPERATURE |
-40~+70°C |
