Description

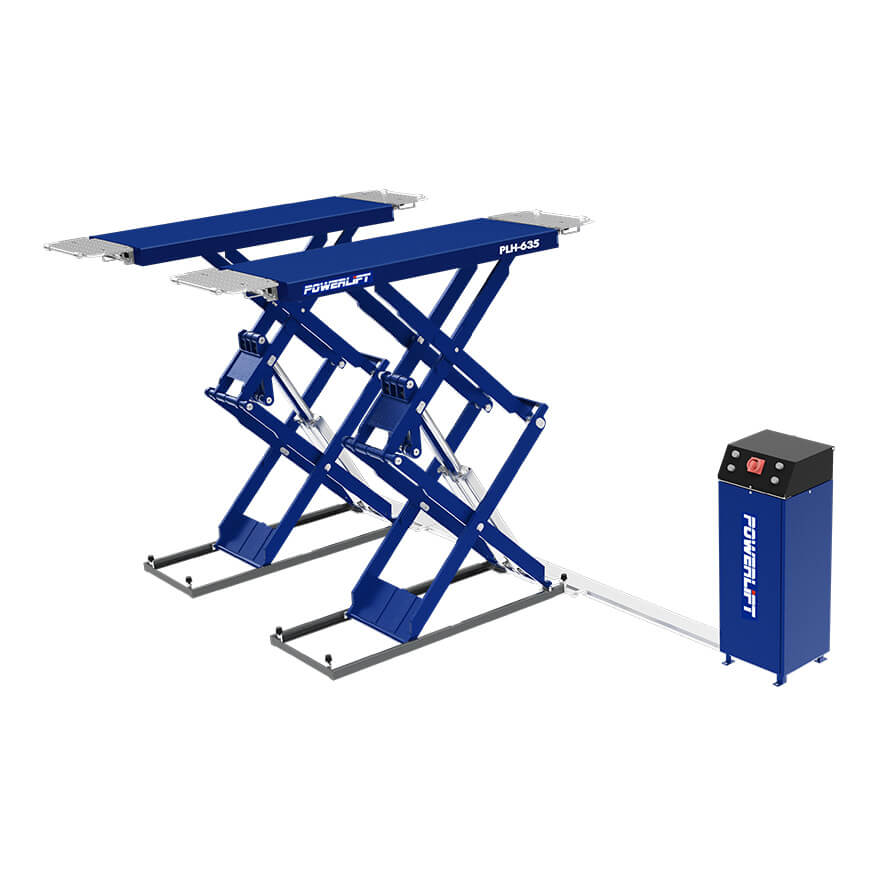

The PLH-635 is a surface-mounted scissor hoist featuring an ultra-low profile of just 115mm, with an impressive maximum lifting height of 1930mm. It can also be recessed into the floor for a flush, space-efficient installation.
With a 3.5-ton lifting capacity, the PLH-635 is perfectly suited for workshops with limited space, including tyre service centres and car body shops. Its design provides full access to all sides of the vehicle, making maintenance, repairs, and detailing more efficient.
The low-profile platforms accommodate a wide range of vehicles — from compact sedans to low-slung sports cars — ensuring versatility and performance in every lift. The hoist is engineer-certified and Worksafe registered, ensuring full compliance with Australian safety and performance standards.
Features:
- Surface-mounted installation for easy setup and space efficiency.
- Widened platforms accommodate a broader range of vehicle models.
- Reliable mechanical locking system ensures safe operation.
- Height limit switch included as standard for added safety.
- Oil cylinder with built-in explosion-proof valve for enhanced protection.
- Computer-controlled intelligent system for precise and stable operation.
- Ultra-low minimum height of just 115mm allows easy vehicle access.
- Extendable approach bridge platform supports vehicles with various wheelbases.
- One-touch automatic leveling for convenient, accurate positioning.
- Standard pneumatic unlocking system for quick and effortless release.
- Tested to 115% dynamic load and 150% static load capacity, ensuring durability and safety under heavy use.

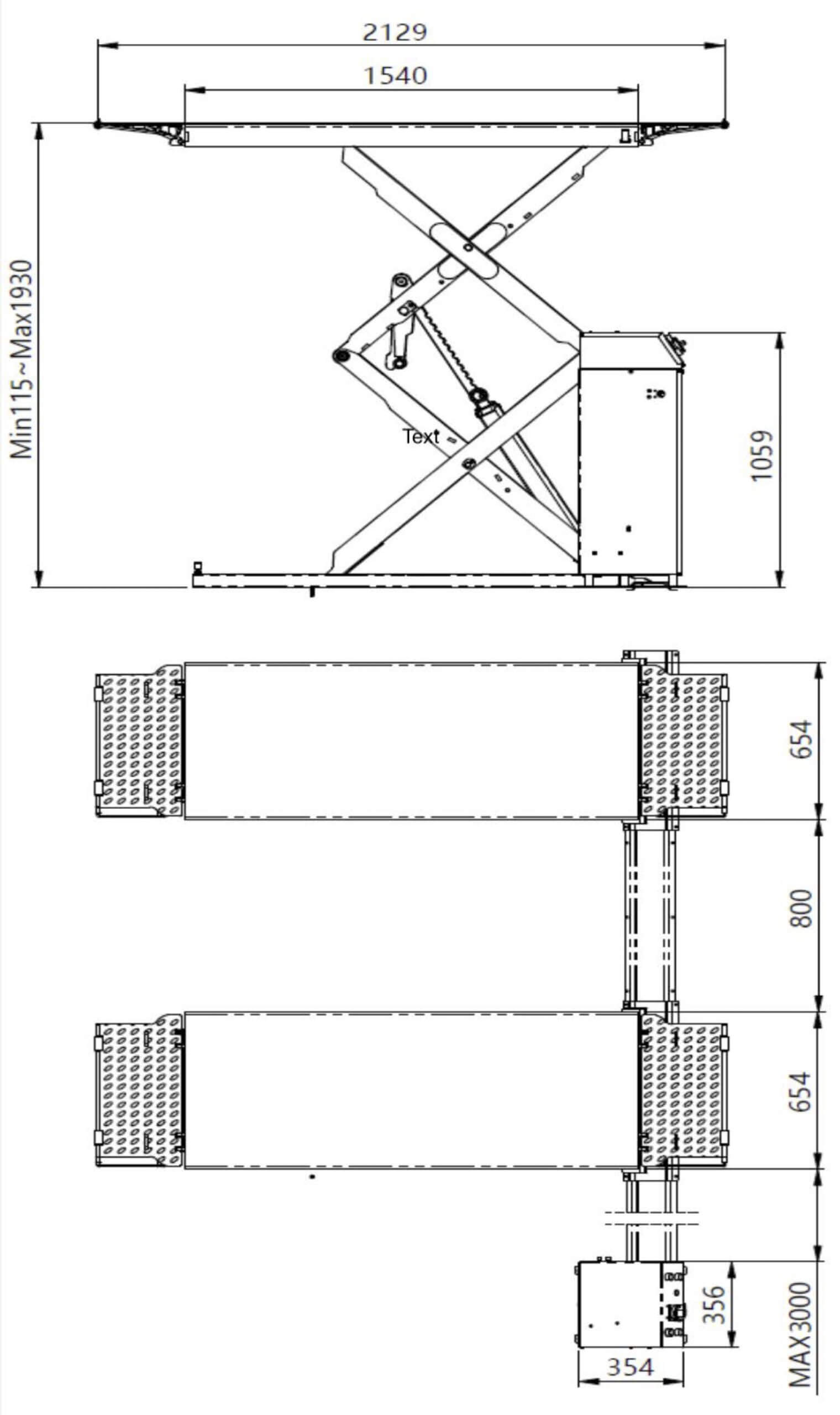

Specifications:
|
Lifting capacity
|
3500kg |
| Lifting time | 45s |
| Lifting height | 1930mm |
| Min. height | 115mm |
| Platform length | 1540-2130mm |
| Platform width | 655mm |
| Platform spacing | 800mm |
| Motor power | 2.2KW |
| Power input | 1-phase or 3-phase |
| Unlocking method | Pneumatic unlocking |
| Net weight | 900KG |
| Gross weight | 950KG |
| Total packages | 2 |
| Main packing dimensions (L*W*H) / weight | 1700*800*420mm / 892kg |
| Control box dimensions (L*W*H) / weight | 430*430*1150m / 58kg |

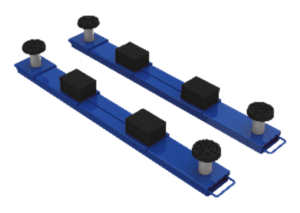

Optional SUV Adaptor Kit:
