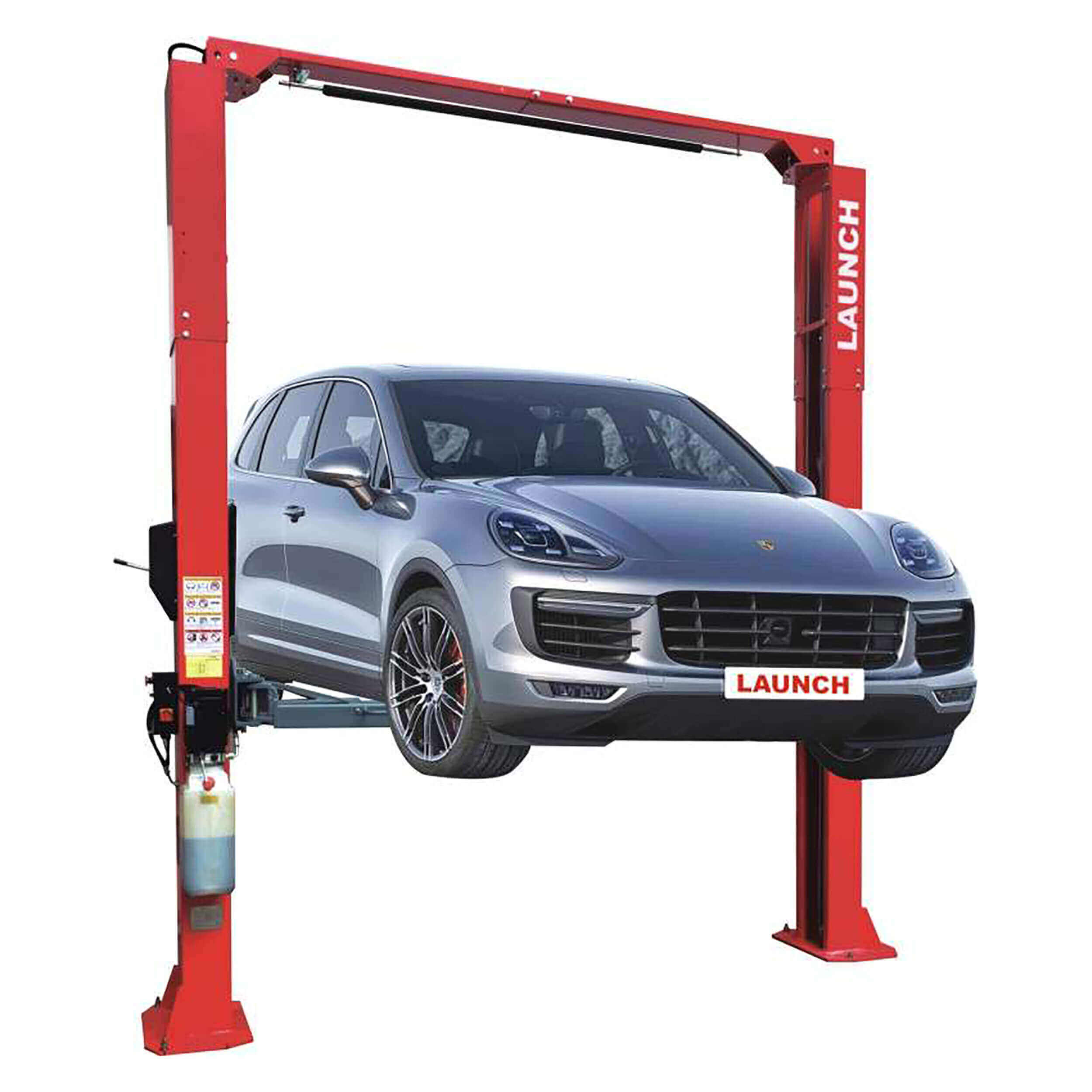

TLT245AT 4500kg 2 Post Hoist

Product Code: TLT245AT

POA

Description

Features:

  • 4500kg Heary Duty floor clearance symmetric 2 post hoist
  • Work Safe Australia, third party engineered and assessed and CE certified
  • Single-side manual safety lock
  • Single-side manual lowering device , safe and easy operation
  • Fully concealed cables and pipes
  • 2 two stage arms and 2 three stage arms
  • Dual hydraulic cylinders drive directly (without chains) makes stable and smooth lifting and lowering
  • Wire rope equalization system fores synchronous movement of two carriages and effectively prevents vehicle from tilting.
  • 24V low voltage control box (IP54 level) ensures operator’s safety
  • Hose burst protection valves to avoid damage or injury in the event of hose failure
  • Cylinder travel limit switch effectively protects cylinder and extends its lifespan
  • Door rubber pad protects car door from being damaged in collision
  • More lifting pads with different height meets the requirements for light lorries and SUVs
  • Passed 115% dynamic loading test and 150% static loading test
  • Asymmetric installation is available with optional kits



Note: Minimum concrete slab thickness of 150mm is required for installation of Launch two post hoists.

Specifications

SPECIFICATIONS
Rated load 4500kg
Lifting height: 1850mm
Initial height 110mm
Lifting time <50s
Lowering time 20s~40s

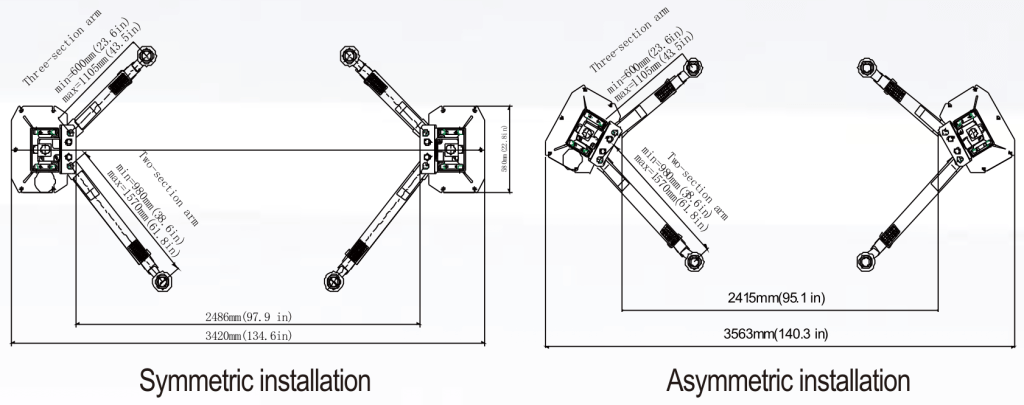

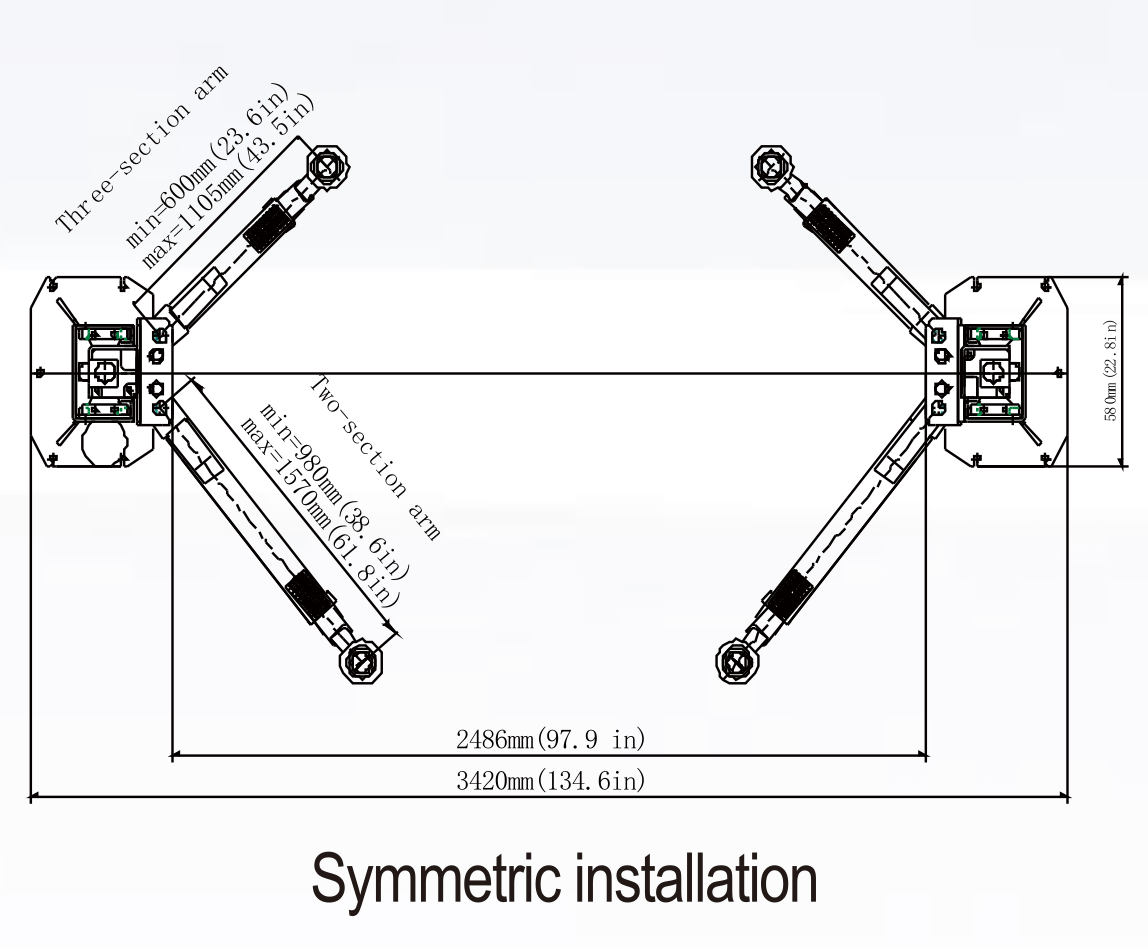

Passing width symmetric installation: 2486mm

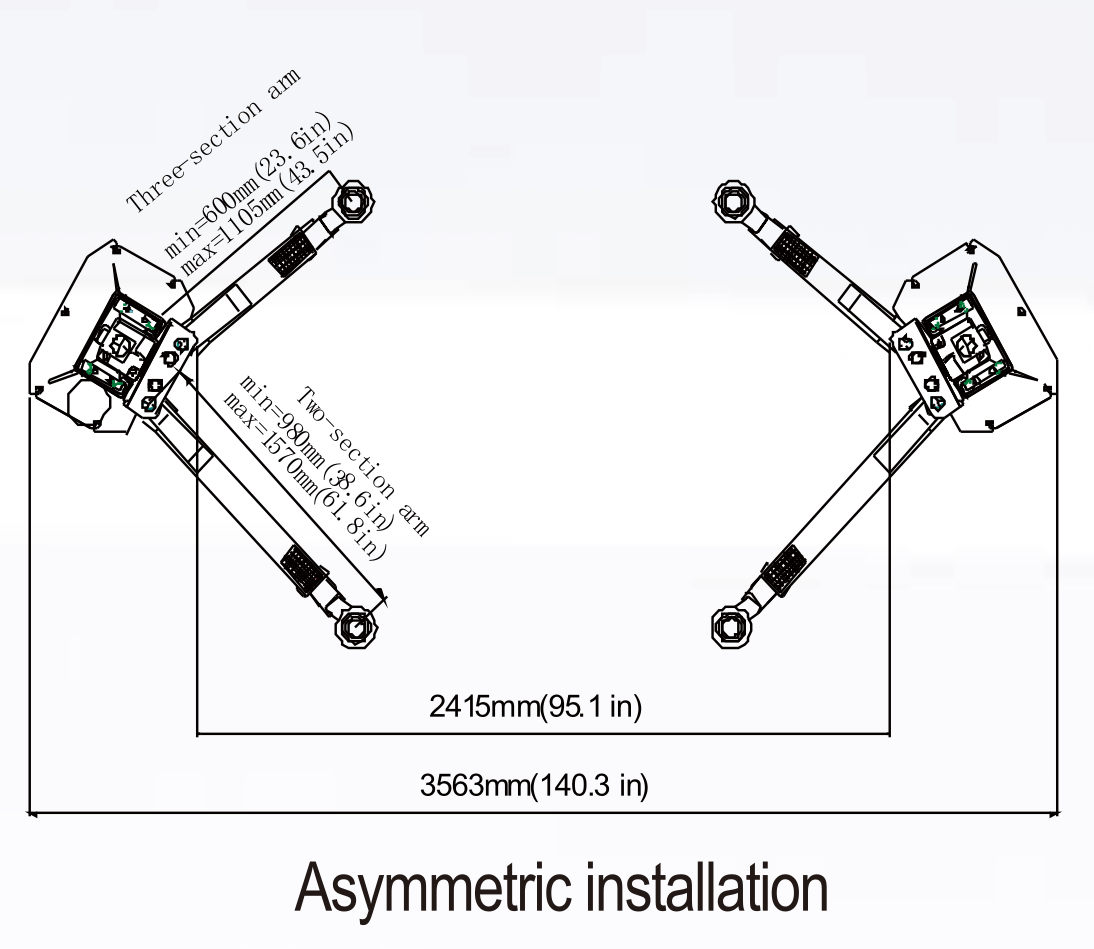

asymmetric installation: 2415mm
Overall width symmetric installation: 3420mm
asymmetric installation: 3563mm
Overal height 3840mm
Motor power 2.2kw
Motor voltage 3 phase/415V, 1 phase/240V
Working oil pressure 18MPa
Working noise <75dB (A)

Packing List

1x TLT245AT 2 POST HOIST

1x User’s manual

Freight Data

Weight: 760 kg

L x W x H: 2.86 x 0.65 x 1.2 m
