TTM313 Tread Depth Examiner
TTM313 Tread Depth Examiner - Image 2

TTM313 Tread Depth Examiner

Product Code: TTM313

$869.00 Ex Tax: $790.00

Finance or Capricorn payments available.

SmartSafe TTM313 Tire Tread Depth Scanner is easy to operate and can quickly solve the problem of tire tread depth measurement. In addition, for tire problems, it will provide professional maintenance advice. Ideal for repair centre professionals!

Availability: In Stock

Request Quote

Description

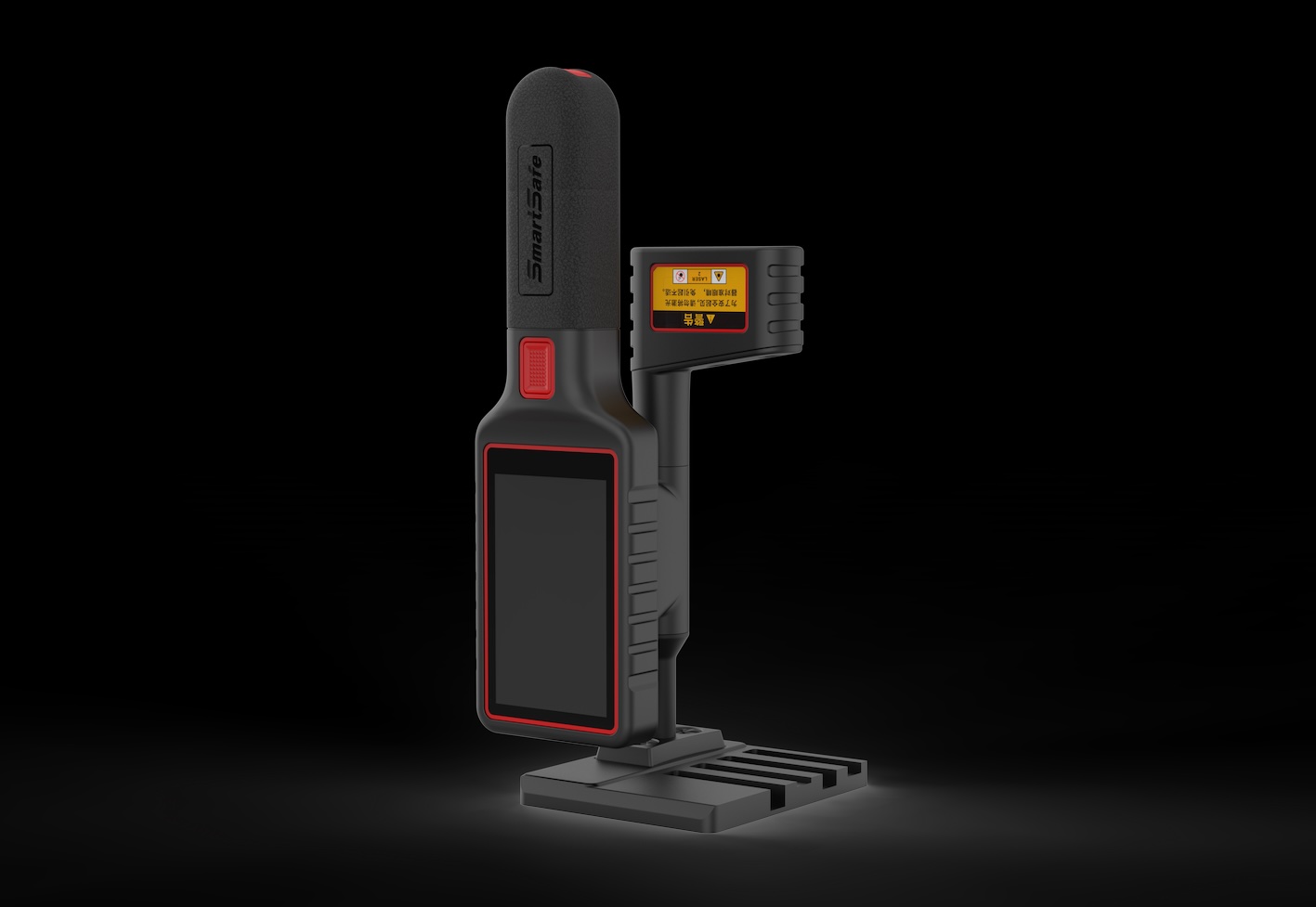

SmartSafe TTM313 is a handheld tread depth laser detector with a measurement accuracy of up to 0.1mm. The innovative structural design makes the measurement not limited by the chassis height. It uses line laser to scan the entire tread surface and supports two modes: full tread surface measurement and single groove measurement.

Features:

  • The innovative structural design makes the measurement not limited by the chassis height, which is convenient and easy to use
  • Support full groove detection, scan the entire tread surface at one time, obtain the number of grooves and the depth data of each groove, and output the detection report
  • Supports single-groove detection, that is, measuring the depth of individual grooves or small tire treads. And output a single tire detection report
  • 0.1mm measurement accuracy, real-time display of measurement results
  • Generate professional inspection reports and maintenance recommendations, which can be shared by scanning the QR code after connecting to Wi-Fi
  • 180mm laser measurement width, supports more tire specifications
  • Please note this tool is not suitable for testing inner and outer edge wear on tyres.

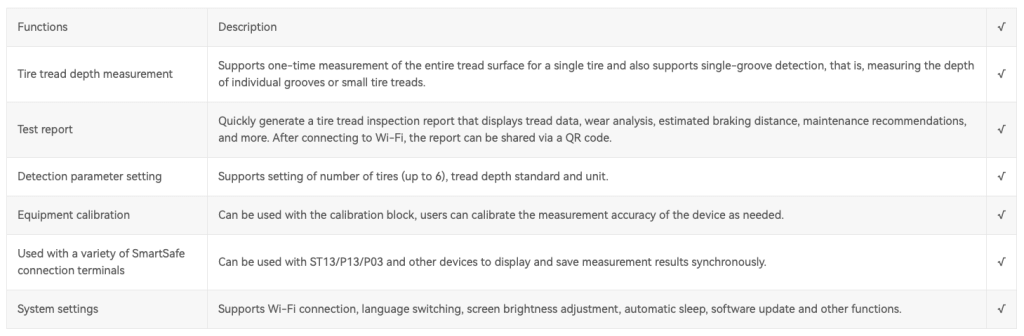

Functions:

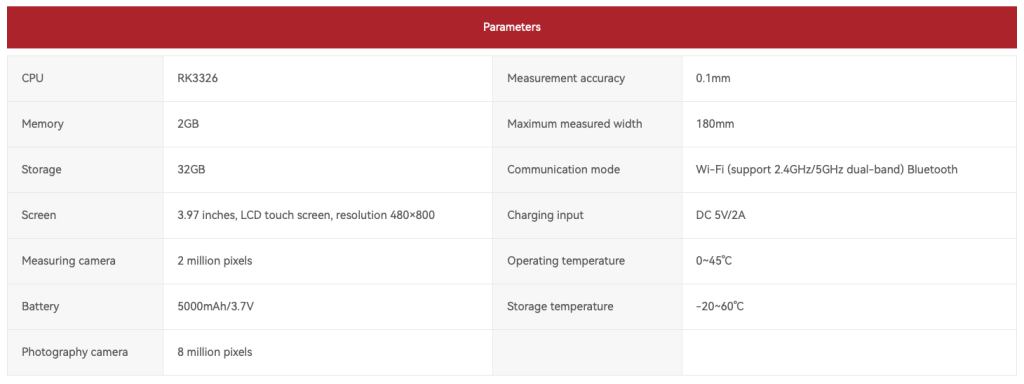

Specifications:

Additional information

Weight 2.5 kg
Dimensions 35 × 14 × 27 cm
Dimensions:

35 × 14 × 27 cm
Weight:

2.5kg
