Description

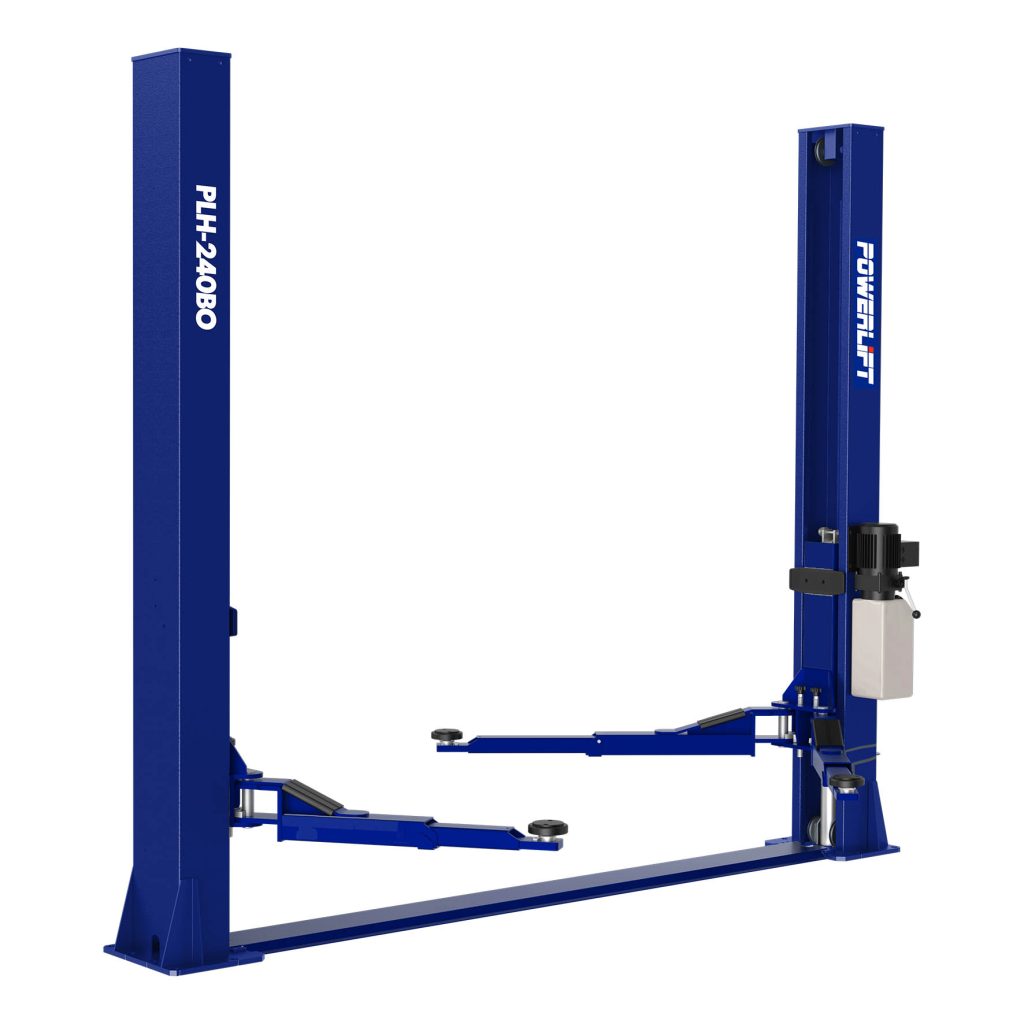

The Powerlift PLH-240BO is a robust base plate style vehicle hoist designed to deliver reliable lifting performance in demanding workshop environments. With 4000kg lifting capacity and 1.90m lifting height (plus screw pad adjustment), it’s ideal for a wide range of vehicles—from sedans to light commercial units.
Key features of the Powerlift PLH-240BO include a double-point manual lock release for safe and efficient operation, a durable powder-coated finish for long-term protection, and door protection pads to safeguard vehicles during lifting. The hoist is engineer-certified and Worksafe registered, ensuring it meets stringent safety and compliance standards.
Whether you’re outfitting a new workshop or upgrading existing equipment, the PLH-240BO offers strength, reliability, and certified safety—everything you need for professional-grade vehicle lifting.
Features:
- 4000kg lifting capacity, suitable for a wide range of vehicles.
- 5mm thick steel posts deliver exceptional structural strength and stability.
- 16mm base plate provides a solid, reinforced foundation.
- High-strength 14mm carrier plate resists bending under heavy loads.
- Reinforced lifting arms designed to prevent deformation and enhance durability.
- Low 28mm base connection height allows vehicles to pass smoothly over the platform.
- Closely spaced locking threads ensure secure and precise lock engagement.
- 115mm pulleys minimise wire rope wear and improve movement stability.
- Height limit toggle switch prevents over-lifting and enhances operational safety.
- Dual pump mounting positions allow flexible installation to suit workshop layouts.
- Twin hydraulic cylinders and heavy-duty chain drive deliver smooth, stable lifting and lowering.
- Wire rope equalization system ensures synchronized movement of both carriages and prevents vehicle tilting.
- Protective door rubber pads safeguard vehicle doors from accidental contact or damage.

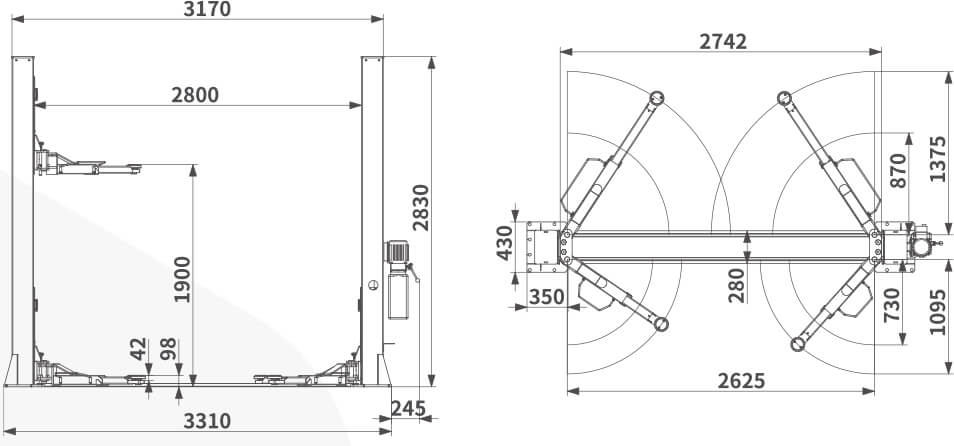

Specifications:
| Lifting capacity | 4000kg |
| Lifting time | 40s |
| Lifting height | 1900mm |
| Min. height | 98mm |
| Overall height | 2830mm |
| Post distance | 2800mm |
| Overall width | 3310mm |
| Motor power | 2.2KW |
| Power input | 1-Phase |
| Locking method | Bilateral Manual Lock |
| Net weight | 620KG |
| Gross weight | 648KG |
| Total packages | 3 |
| Main packing dimensions (L*W*H) / Weight | 2880*500*767mm / 600kg |
| Accessory box dimensions (L*W*H / Weight | 810*260*350mm / 24kg |
| Outrigger box dimensions (L*W*H / Weight | 1200*200*150mm / 24kg |
Downloads:
Note: Minimum concrete slab thickness of 150mm is required for installation of Powerlift two post hoists.
