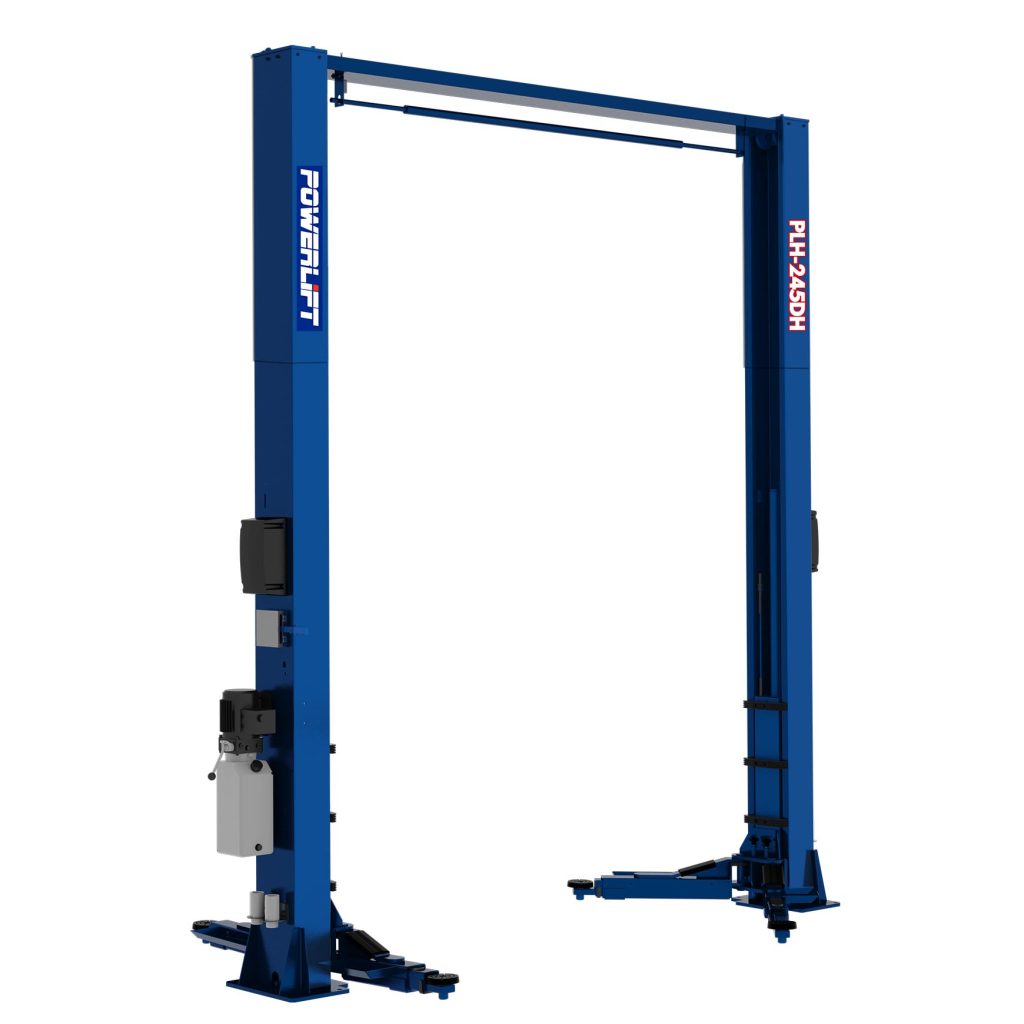

PLH-245DH 2 Post 4.5 Ton Clear Floor Car Hoist

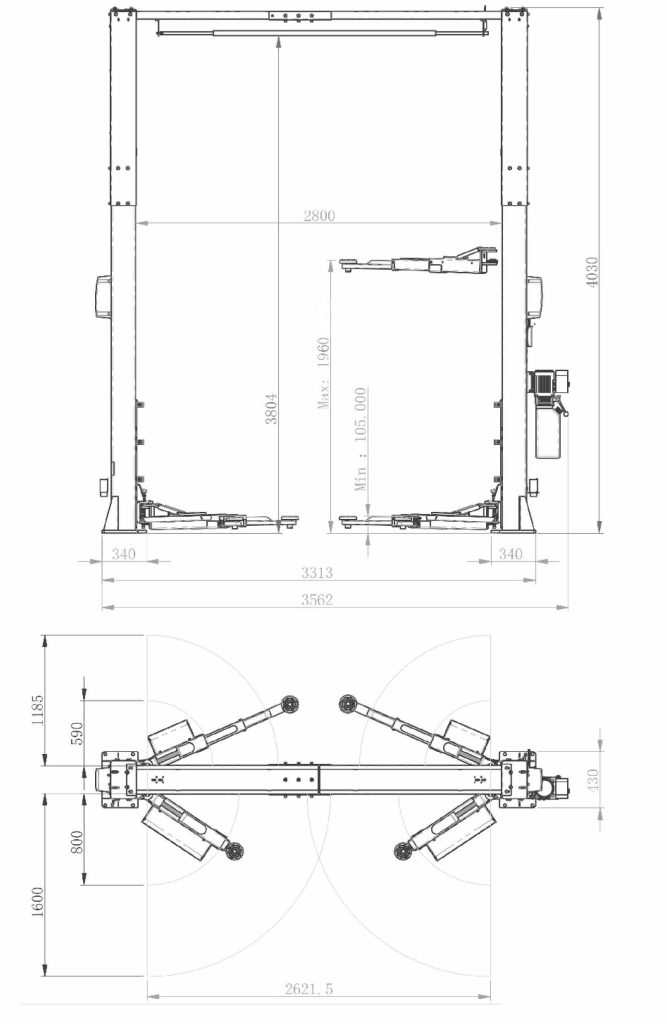

The PLH-245DH is a robust clear floor car hoist engineered to deliver consistent, high-performance lifting in demanding workshop environments. With a 4.5-ton lifting capacity and a 1.96m lifting height, it’s perfectly suited for a wide range of vehicles—from sedans to light commercial units.

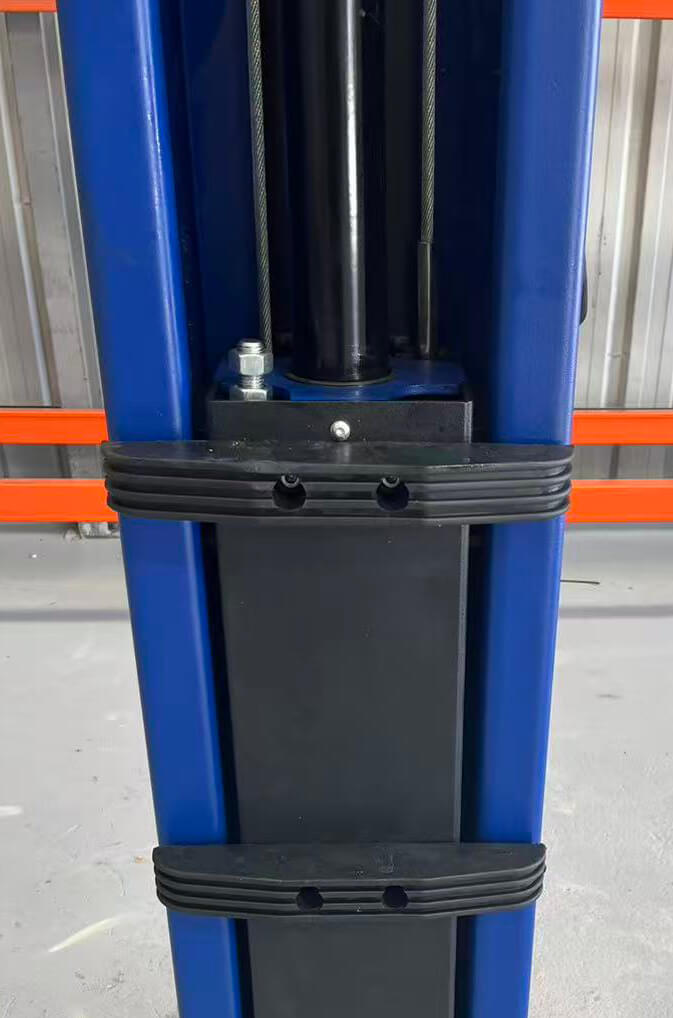

PLH-245DH features a single-point manual lock release for safe and efficient operation, along with a durable powder-coated finish that protects against wear, corrosion, and workshop grime. Door protection pads help safeguard vehicle panels during lifting, and the hoist is engineer-certified and Worksafe registered, ensuring full compliance with Australian safety and performance standards.

Whether you’re setting up a new workshop or upgrading your existing setup, the PLH-245DH delivers the strength, reliability, and certified safety your business demands.

Features:

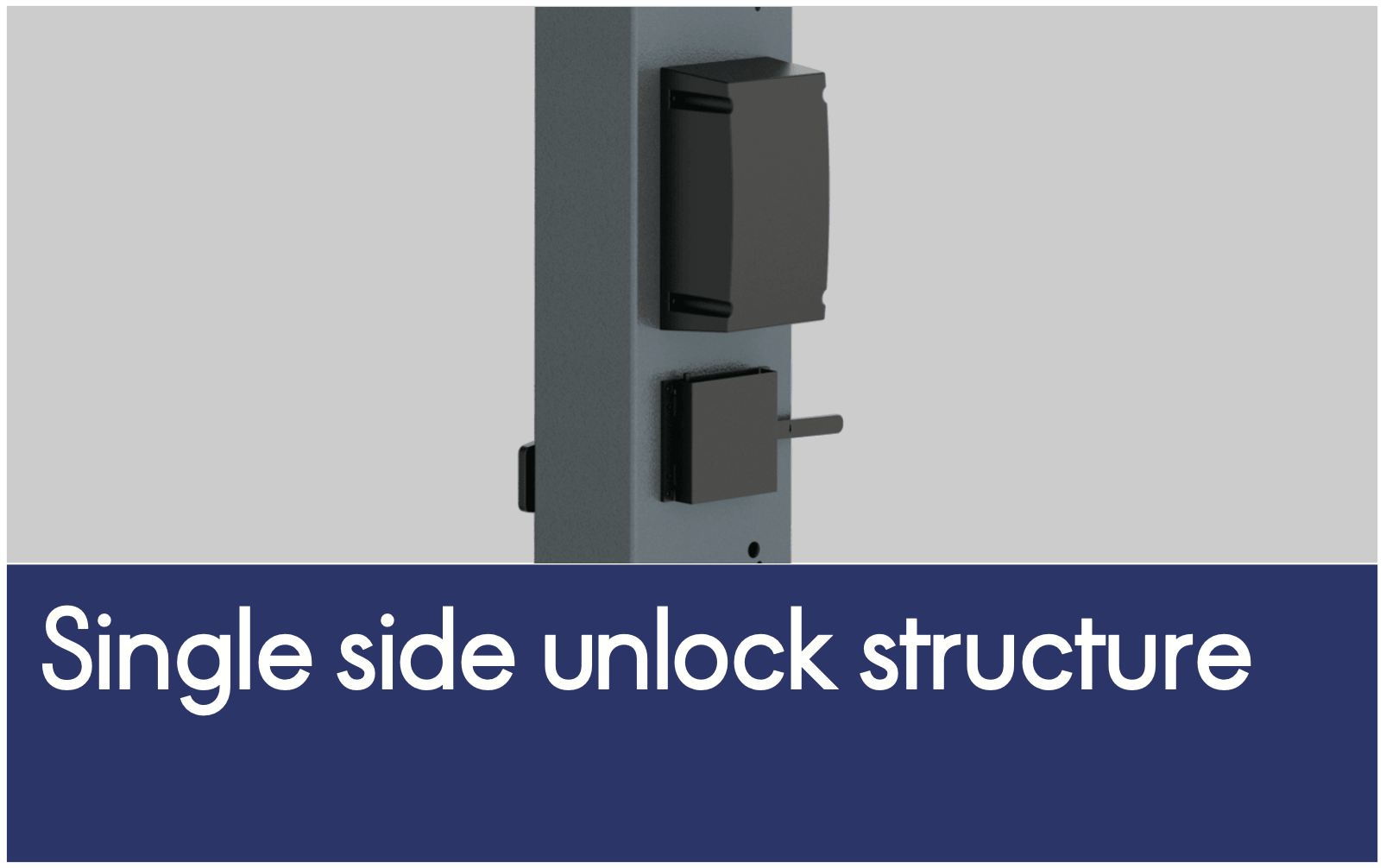

• Handy single-side unlock design for convenient and safe operation
• Standard height limit switch prevents over-lifting for added equipment and vehicle protection

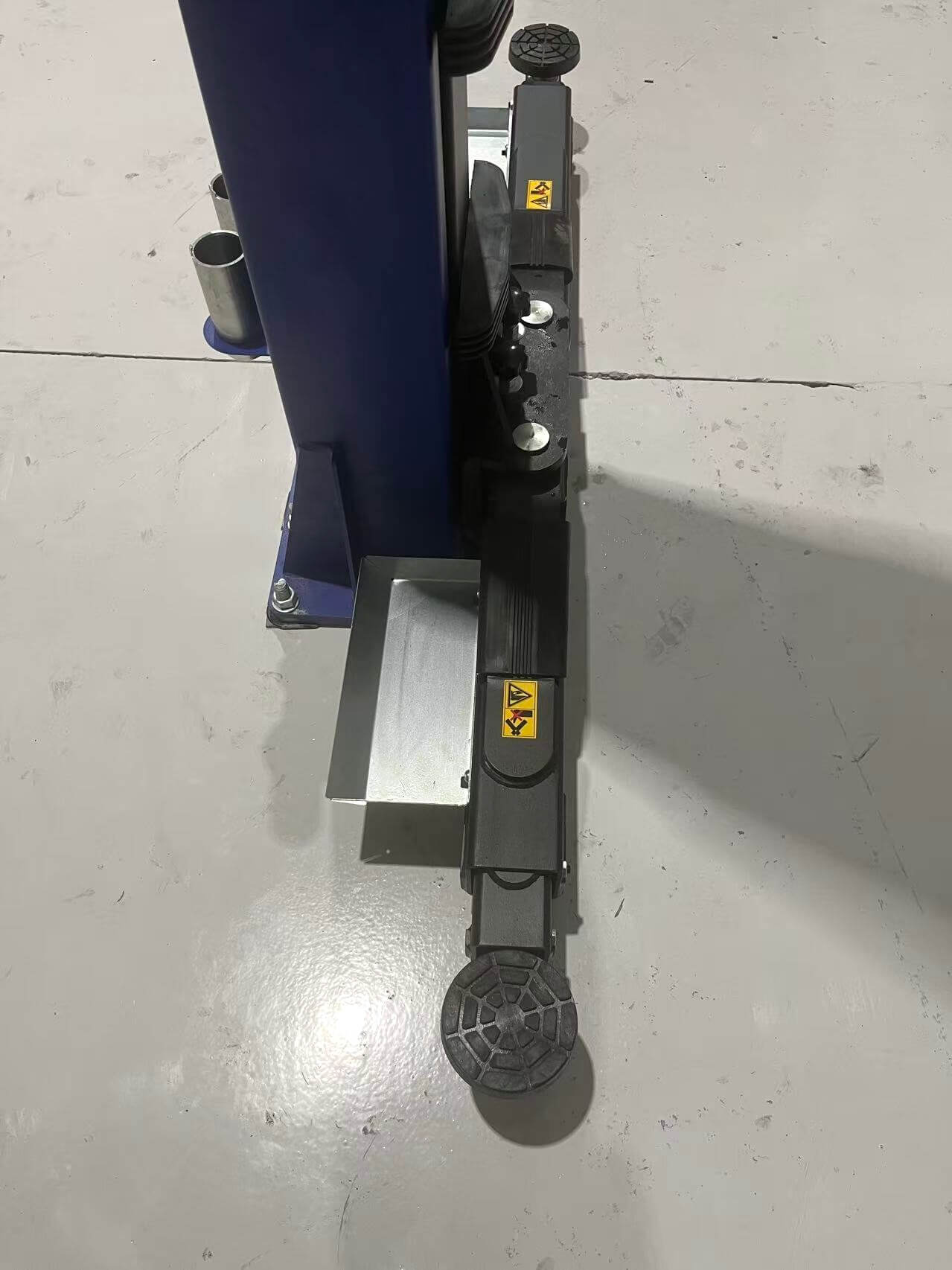

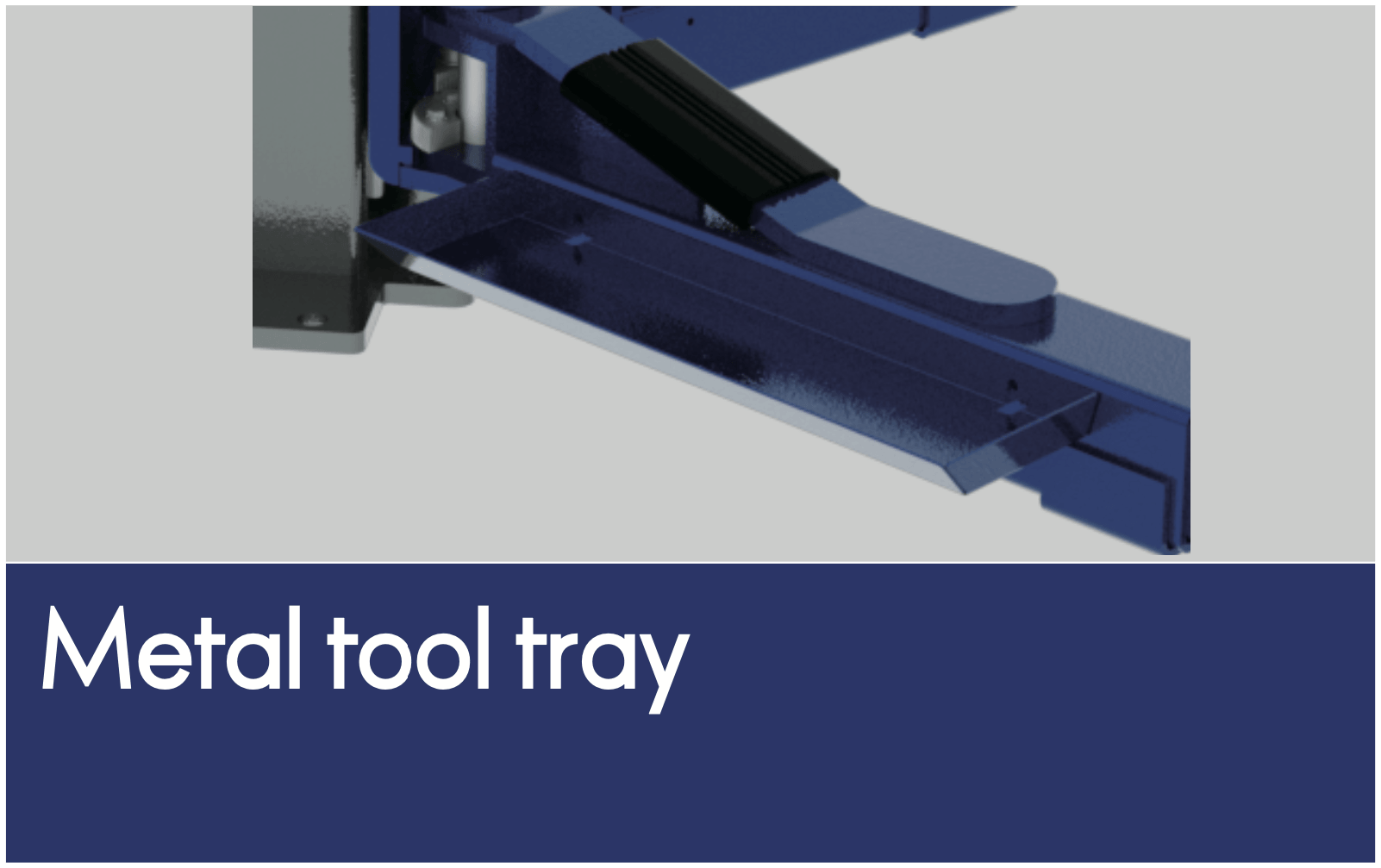

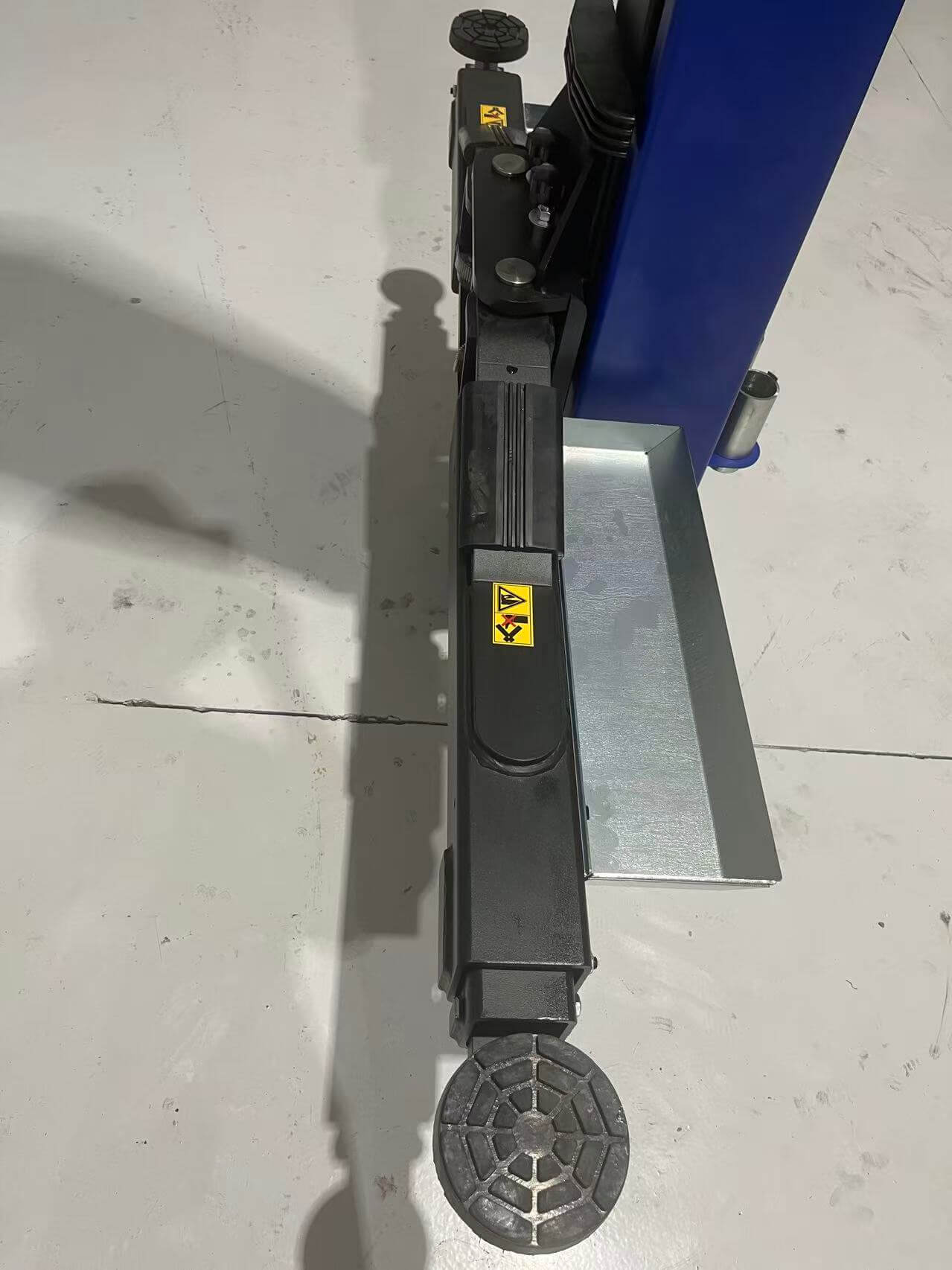

• Integrated tool trays for foot protection and convenient storage of tools and small parts
• Integrated 2x 3-stage arms and 2x 2-stage arms
• Two-cylinder direct drive system for lower maintenance and smoother operation.

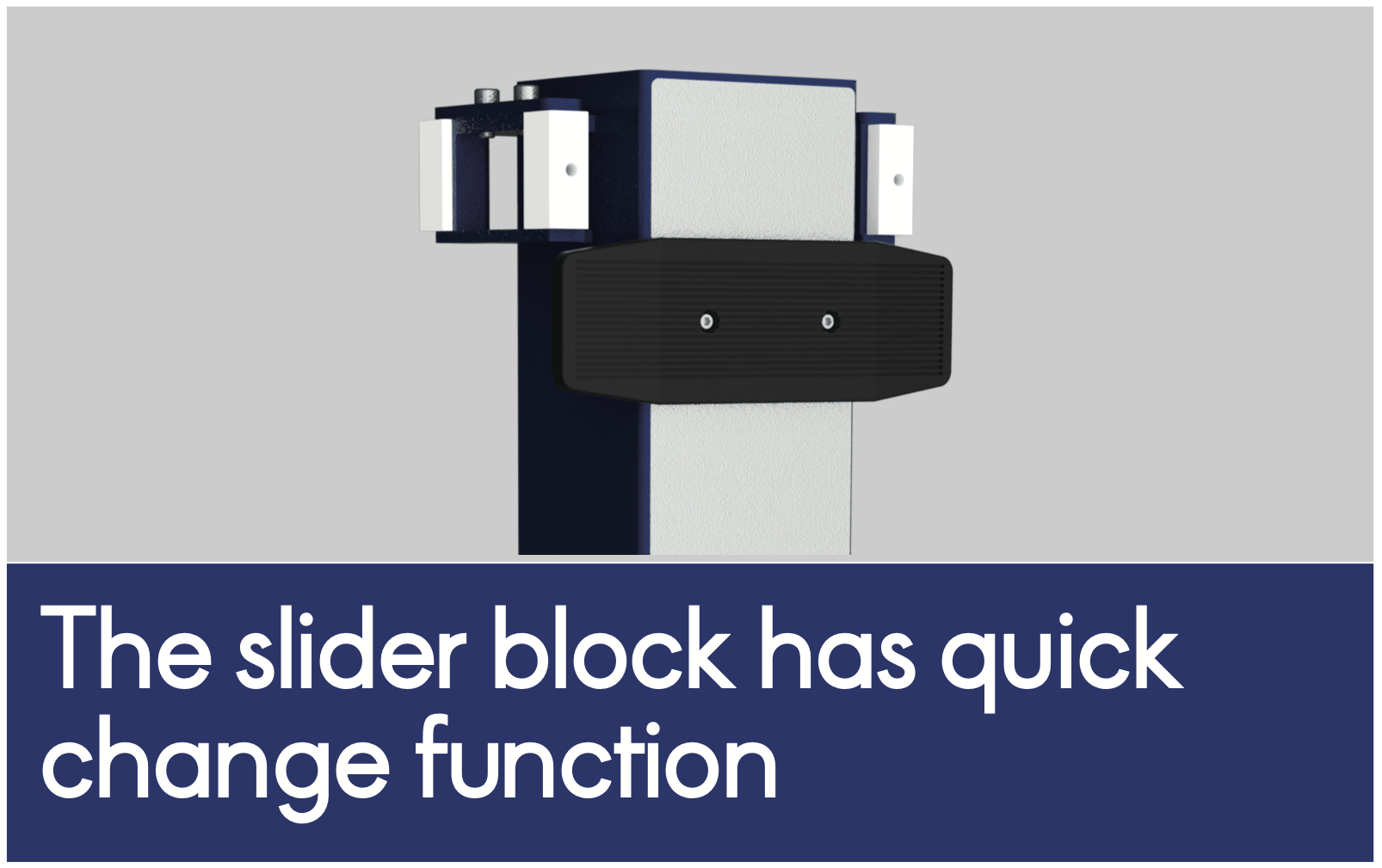

• Quick-change slider blocks allow for easy maintenance and reduced downtime
• 5mm thick steel column construction ensures long-lasting structural strength
• 16mm thick column base foot plates provide excellent foundation stability
• High-strength, extra-long carriage made from 14mm bent steel plate for enhanced durability
• Reinforced lifting arms to prevent deformation under heavy load
• High-strength fine-tooth locking mechanism with closely meshing gears for added safety and precision
• 115mm diameter steel rope pulleys minimise wear and ensure smoother operation

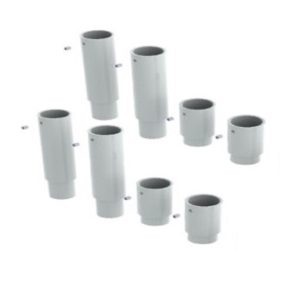

• Bonus 4x100mm and 4x37mm 4WD height adaptors with holders included.

Specifications:

Downloads:

1. Product catalogue
2. Manual
3. WorkSafe Registration No.
