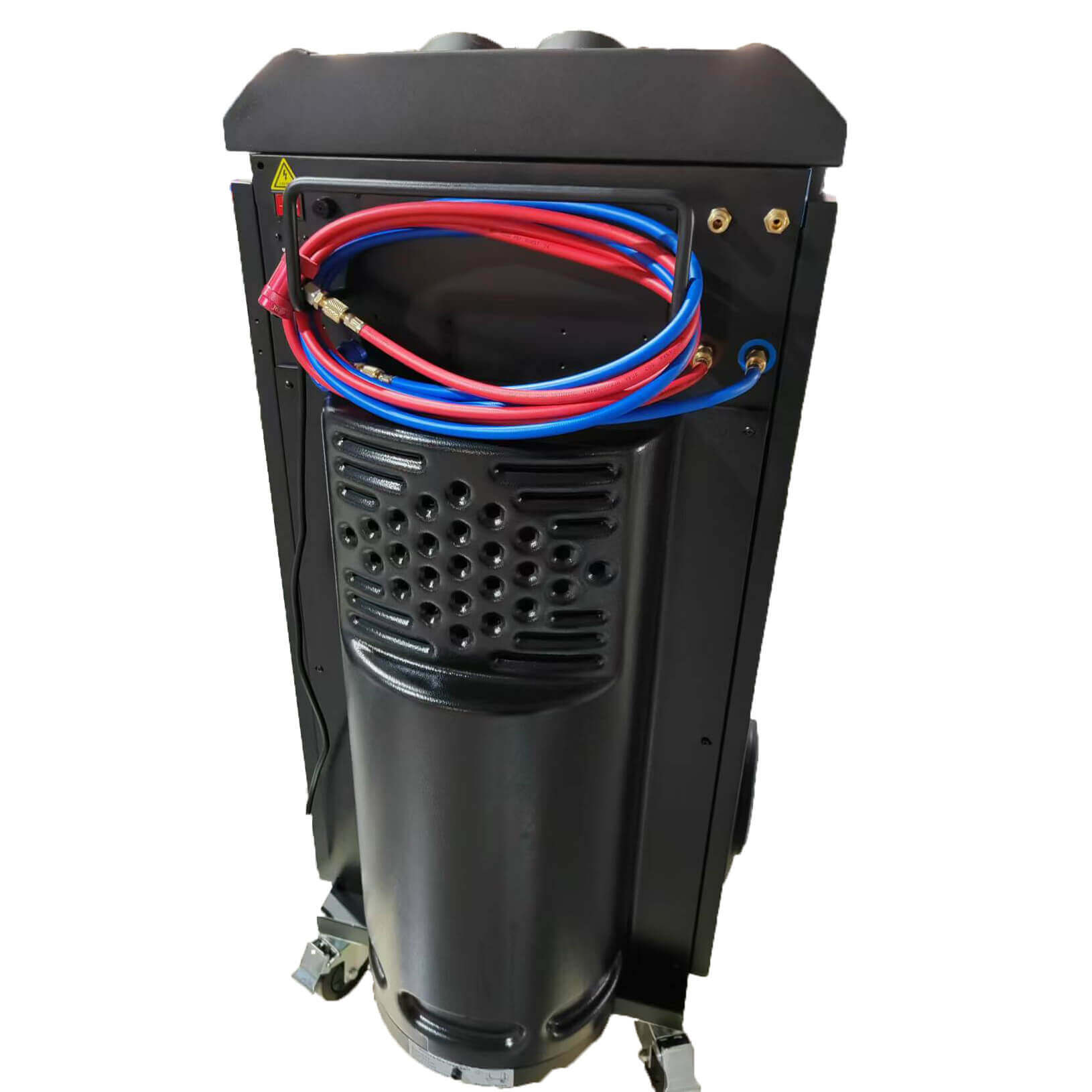

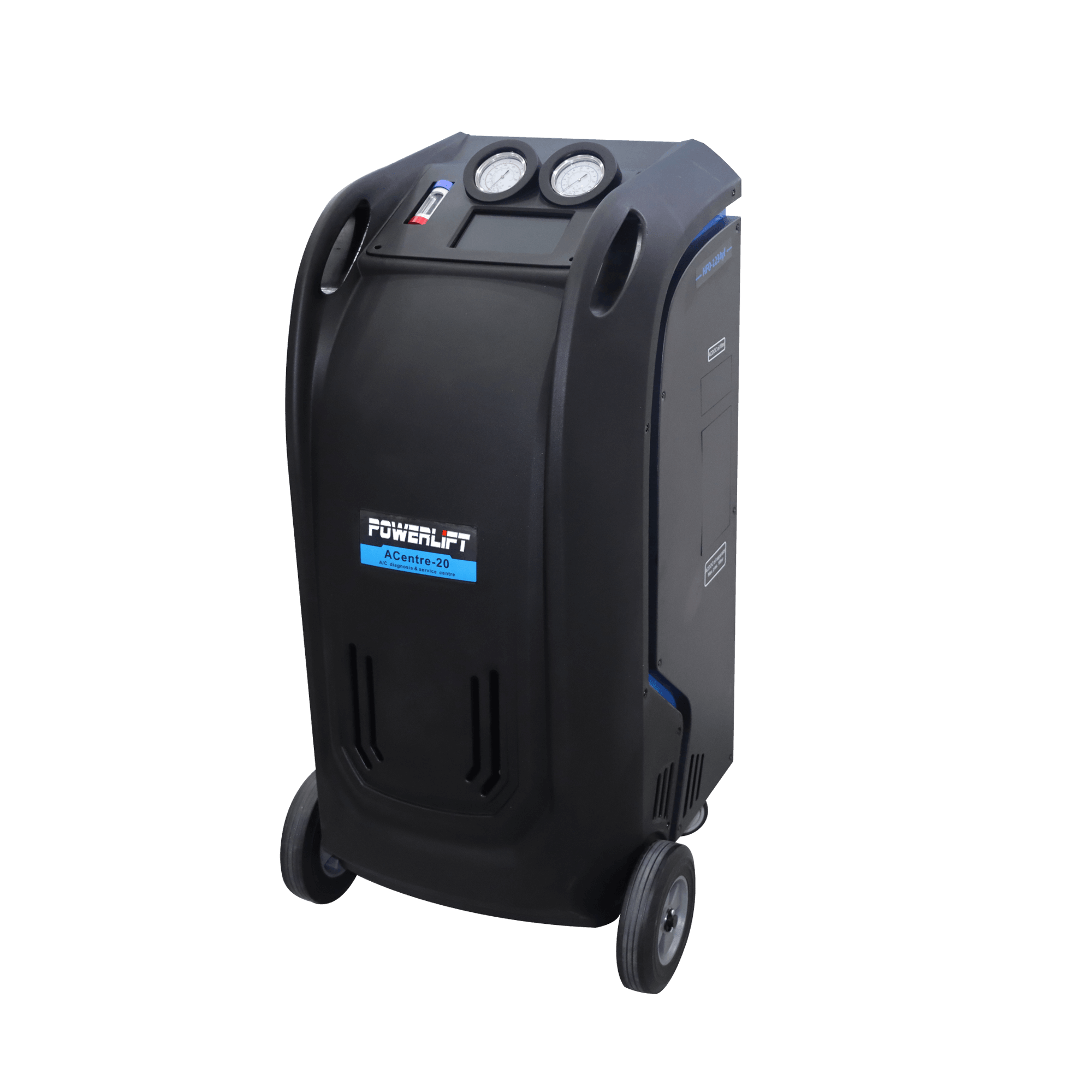

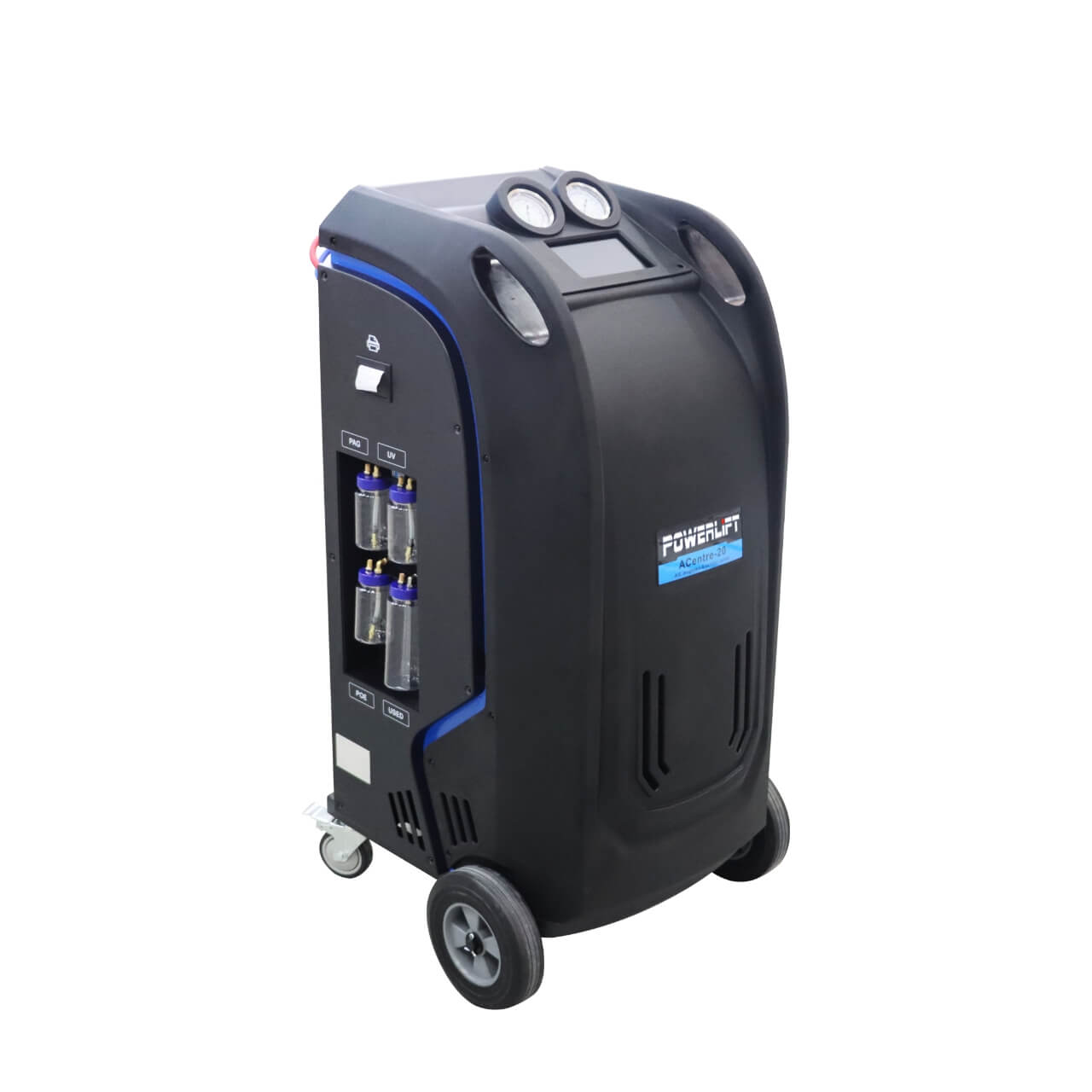

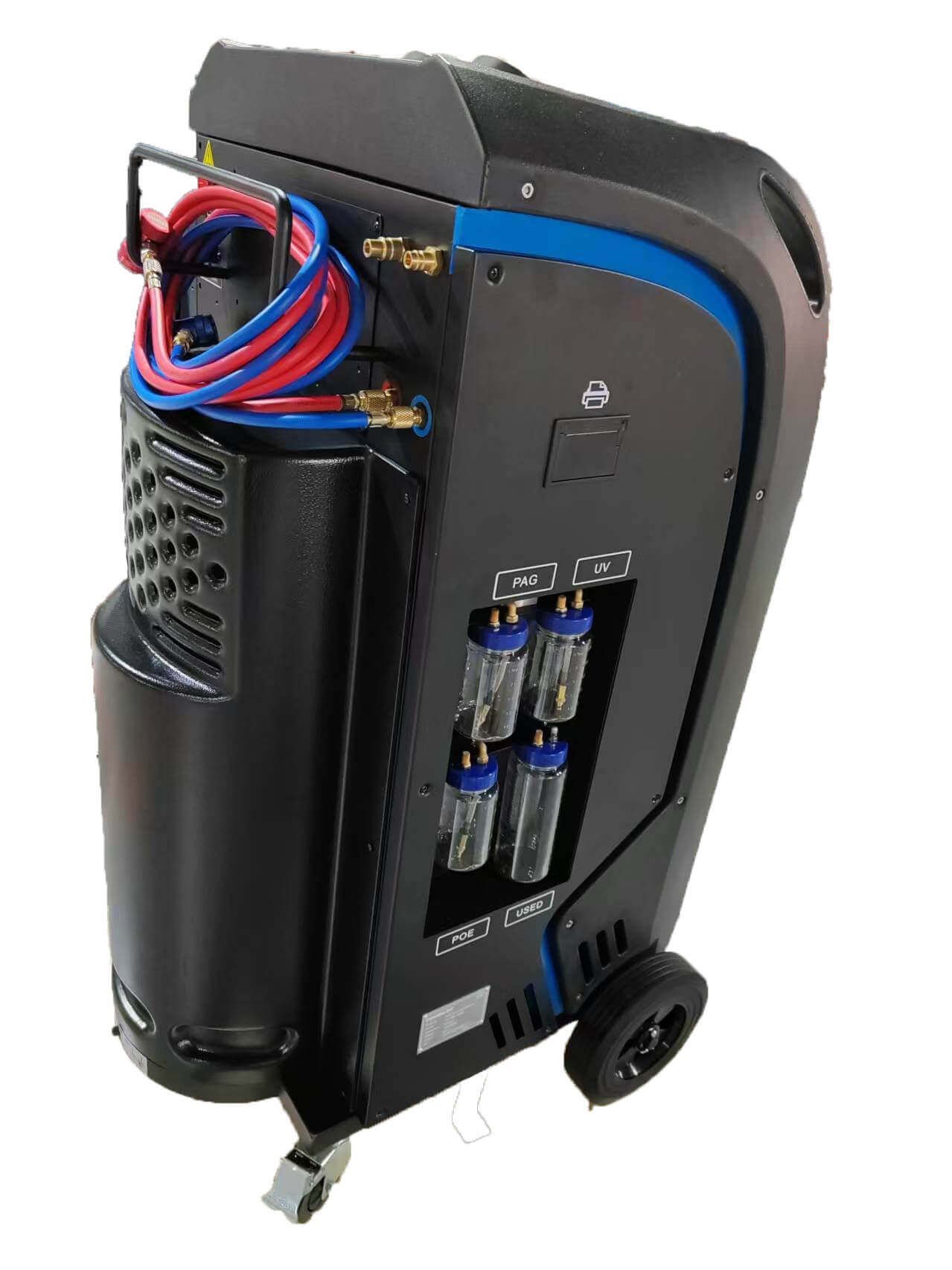

PLV-200 Plus Automatic A/C Service Station
PLV-200 Plus Automatic A/C Service Station - Image 2
PLV-200 Plus Automatic A/C Service Station - Image 3
PLV-200 Plus Automatic A/C Service Station - Image 4
PLV-200 Plus Automatic A/C Service Station - Image 5

PLV-200 Plus Automatic A/C Service Station

Product Code: PLV-200

$5,489.00 Ex Tax: $4,990.00

Availability: In Stock

Request Quote

Description

PLV-200 Plus fully automatic A/C service station is the latest product for refrigerant recovering, recharging and purifying, developed based on durable components and reliable SCM control programs. The product meets the needs of different customer groups with simple operation, colour touch screen, database and built in printer. it’s the best choice for workshops.

PLV-200+ integrates normal auto A/C services (recovery, vacuum, oil injection and refrigerant charge) and specialised compressor oil replacement function, in both individual function and automatic sequence modes. As SAE J2843 approved, the machine offers “normal charging” for traditional fuel vehicles and “high voltage charging” for EV and HV, in later mode internal pipeline cleaning is performed to remove oil residue. This helps avoid electric insulation fault in HV and EV caused by contamination of oil with electric conductivity nature.

Features：

  • Fully automatic in recovery/vacuum/oil injection/charge
  • Automatic air purge
  • Vacuum skip in “auto mode”
  • Automatic service reminding after 600 operations
  • Vacuum leak test
  • UV dye injection
  • Hand valves free
  • Pressurisation to speed up used oil discharge
  • A/C database included, update through USB port
  • Thermal printer
  • Condenser and cooling fan
  • Heater band
  • Work with R134a or HFO1234yf (pre request)
  • Inbuilt refrigerant identifier (Optional)

    •

    Main Functions：

  • Tank fill
  • Recovery with SRR feature, SRR (Supreme Recovery Rate) system, patent pending, assures a recovery rate higher than 99%.
  • Charge (including PAG or POE oil injection, UV injection and refrigerant charge) Automatic mode (full cycle of recovery, vacuum and charge)
  • Flush(Unidirectional & Bidirectional)
  • Fully automatic in flush/recovery/vacuum/oil injection/charge
  • Automatic air purge
  • Vacuum leak test
  • UV dye injection
  • Automatic service reminding

    •

    Specifications:

  • Input power: AC220v±10%~50Hz
  • Compressor power: 3/8HP
  • Display: 7” touch screen
  • Max. refrigerant recovery speed: 0.25Kg/min. Patent pending SRR (Supreme Recovery Rate) system ensures 99% recovery rate Vacuum pump: 120L/min
  • Evacuation time selection: 2-60 min
  • POE/Used oil vessel: 600ml
  • UV/PAG oil vessel: 250ml
  • Refrigerant charging speed: Max. 2Kg/Min
  • High capacity spin-on filter-drier: 600ml capacity, for recovering totally 100KG refrigerant Accuracy of PAG/POE, Used oil/UV bottle load cell: ±5g
  • Accuracy of refrigerant cylinder load cell: ±10g
  • Refrigerant cylinder: 10KG, with heater band
  • Machine maximum working pressure: 20bar with electronic high-pressure protection warning and safety release valve Gauges: High side -1bar~30bar, Low side -1bar~16bar
  • Digitally displayed cylinder pressure and temperature, electronically controlled air purge
  • Automatic Non-condensable purge (NCG) based on HFO-1234yf pressure-termperature nature
  • Vehicle A/C database included
  • Electronically monitoring and displaying system service intervals
  • Thermal printer
  • Heater band, Condenser and cooling fan included
  • Gross weight: 132KG; Net weight: 104KG
  • Package: 830*700*1360mm; Unpacked: 785*652*1236mm

    •

    Additional information

    Weight 132 kg
    Dimensions 83 × 70 × 136 cm
