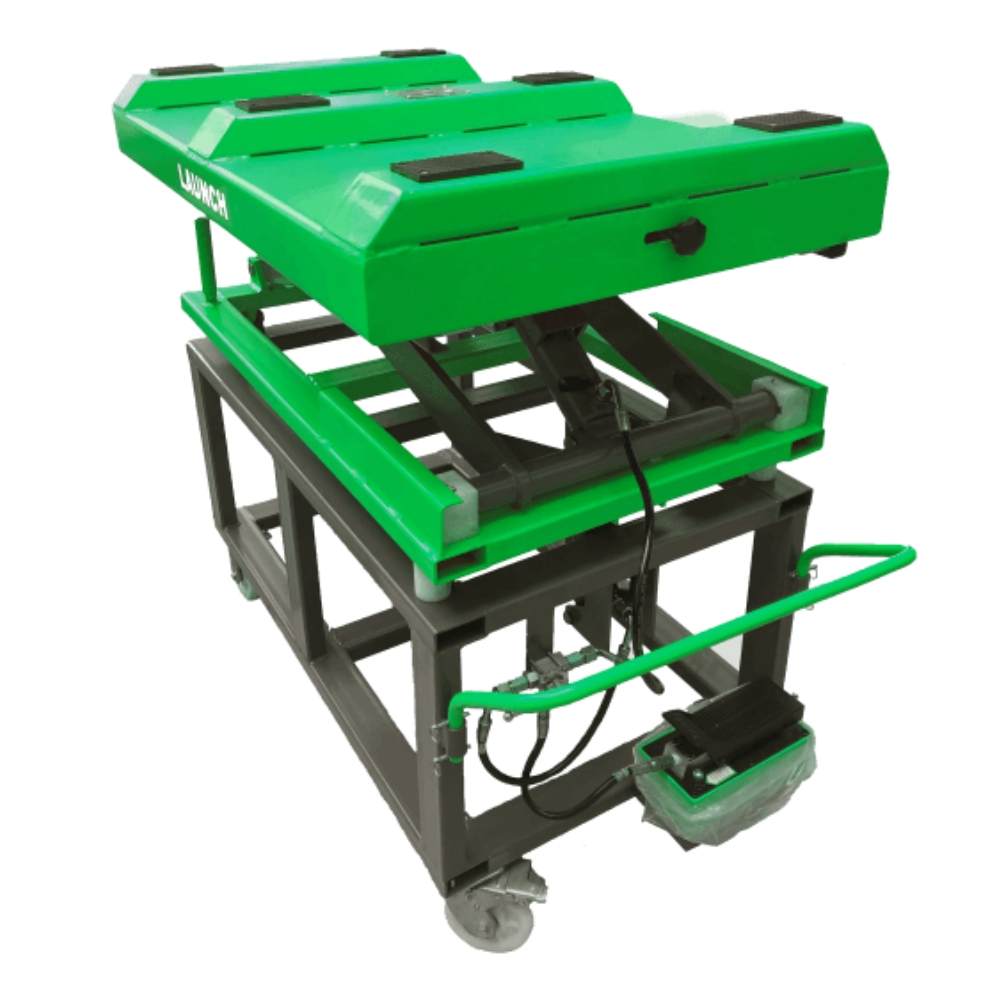

TLT615D EV Battery Pack Lifting Platform

Product Code: TLT615D

POA

LAUNCH TLT615D is ideal for EV Battery pack replacement and other routine maintenance. This compact lift is designed for room limited workplace, and it is capable of operating safely and efficiently by mechanical safety lock.

Description

LAUNCH TLT615D is ideal for EV Battery pack replacement and other routine maintenance. This compact lift is designed for room limited workplace, and it is capable of operating safely and efficiently by mechanical safety lock.



Features:

  • Working for battery-pack removal and used as specialty lifting bracket.
  • Easy to lift and lower with electrical controller, secured by mechanical safety lock.
  • Durable and rigid tubular steel features tear resistance, high abrasion resistance, shock absorption buffer.
  • The maximum lifting weight is 1500kg, and the maximum lifting height is 1850mm.



Specifications:

  Supply Voltage
  AC 220V 50Hz
  Operating Voltage   DC 24V
  Power   2.2kw
  Rated Lifting Weight   1500kg
  Lowest Height   1200mm
  Highest Height   1850mm
  Platform Width   800mm
  Platform Length   1380mm
  Ascending Tune   <30S
  Descending Time                                <40S
