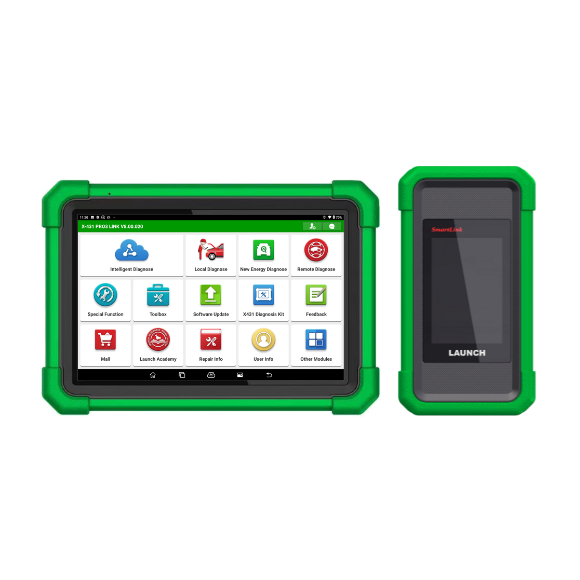

Description
| EV Diagnosis Add-on Connectors are included. |
1. Wide electric vehicle coverage and 20+ battery packs supported.
2. OE-level EV diagnostics and battery pack diagnostics.
3. Battery pack data stream enables precise fault detection and faster repair.
4. Fast reading of battery pack information: module count, SOC, SOH, temperature, etc.
5. In-depth access to cell voltage and temperature data help guide repair decisions.
6. Supports diagnostic report generation, sharing, and printing.
7. Supports 40+ service functions.
8. Expandable vehicle coverage via MALL, including passenger cars, commercial vehicles, motorcycles, IMMO service, etc.
Specifications
| OS | Android 10.0 |
| Display | 10.1-inch, 1280*800, fully laminated and sunlight-readable |
| Battery | 47.88Wh(7.6V, 6300mAh) |
| CPU | 2.0GHz, Quad-core |
| Storage | 4+64GB |
| Camera | Rear camera, 8MP |
| WIFI |
2.4GHz/5Ghz (b/g/n) |
| Interface | Type-A, Type-C |
| Operating Temperature | 0℃~50℃ |
| Dimension | 274*190.5*40.5 (mm) |
SmartLink C V2.0
| Display | 3.95”, 320*480 |
| RAM | 256MB |
| Storage | 8GB |
| Communication | Local Diagnosis: WIFI/USB
SmartLink Remote Diagnosis: Ethernet |
| Interface | DB15, Type B USB, RJ45, DC |
| Working Temperature | 9V DC~36V DC |
| Dimension | 200*110*47 (mm) |
