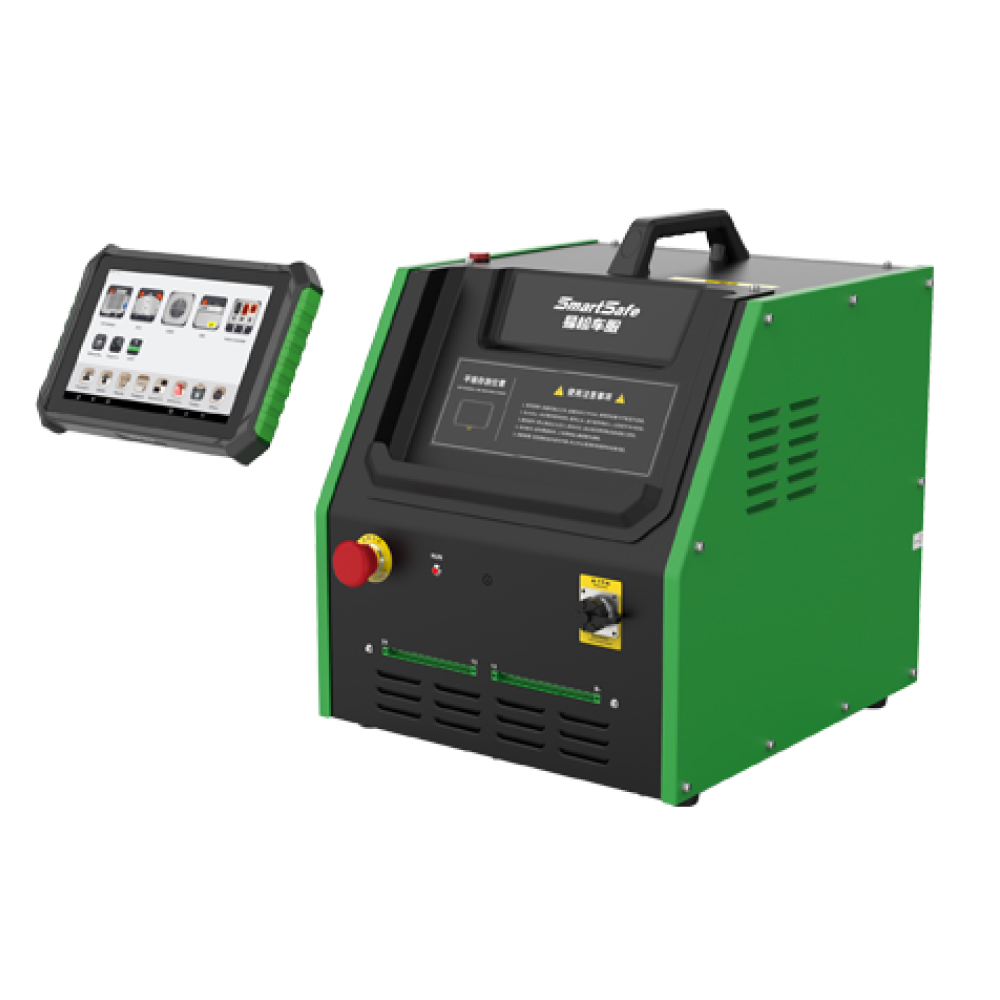

CE39

Description

Features

• Supports simultaneous operation of diagnosis, equalization and charging/discharging.
• Supports whole-vehicle diagnosis, covering full-system detection for over 95% of electric vehicle models.
• Supports offline testing of batteries, motors and electronic controls.
• Supports offline testing of compressor, DCDC and OBC.
• Supports intelligent equalization technology, enabling synchronous equalization of 24 battery cells.
• Supports 40A high current, significantly improving work efficiency.
• Supports remote monitoring of equipment, allowing real-time tracking of operational status.

Functions

Comprehensive whole-vehicle diagnosis
Covering over 95% of electric vehicle models, it supports full-function diagnostics, including code reading, code clearing, data stream reading, actuator tests, and special functions. It enables real-time data stream monitoring and visually presents the communication network and fault points through a vehicle topology diagram, ensuring precise diagnosis and fault localisation.

Professional testing and maintenance for battery, motor, electric control, compressor, DCDC, and OBC
Supports offline diagnostics for high-voltage core components such as DC converters, onboard chargers, air conditioning compressors, PTC heaters, and motor controllers. It enables offline reading of data streams and fault codes.

Built-in control board fault code repair guidelines
Provides troubleshooting ideas, circuit schematics, control board topology diagrams, and guided repair.

Battery pack deep inspection
Supports reading SOC/SOH, individual cell/module voltage, temperature, and fault information. It automatically calculates key indicators such as total voltage and voltage difference, and marks abnormal data.

Precise cell equalization
Supports synchronous equalization of 24 battery cells and is compatible with mainstream battery types such as ternary lithium, lithium iron phosphate, and lithium titanate.

High-current efficient charging and discharging
Supports 40A charging and 20A discharging currents, quickly adjusts the battery cells to the target voltage, and meets the fast charging and discharging requirements of the battery pack.

Tablet Collaborative Interconnection
The lightweight host is equipped with a smart tablet, which supports simultaneous diagnosis and equalization operations, as well as real-time monitoring of equalization progress, charge and discharge curves, and device status.

Multiple security protections
Built-in overvoltage, undervoltage, overcurrent, short circuit, reverse connection, and over-temperature protection mechanisms ensure the safe operation of the device and battery.

Features

OTA remote upgrade
Supports remote firmware upgrades and function module iteration.
