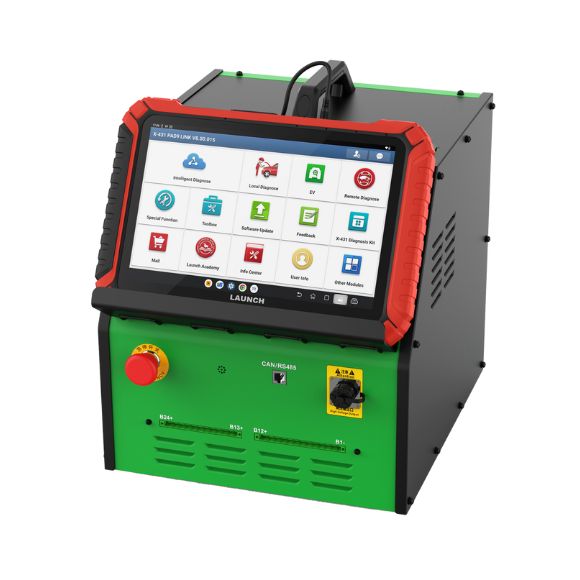

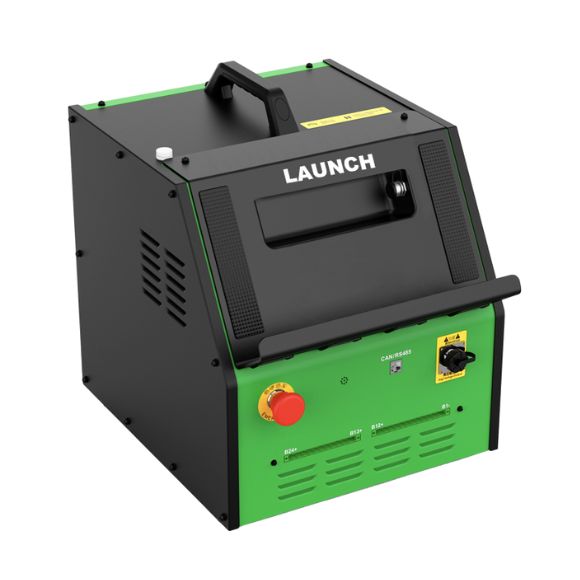

Description
1. Up to 24 battery cells equalization.
2. Compatible with multiple battery types.
3. Supports 40A charging and 20A discharging.
4. Comprehensive battery safety protection.
5. Covers over 95% of electric vehicles on the market for thorough diagnostic capabilities.
6. Testing maintenance of core EV components.
7. In-depth battery pack inspection.
8. Multitasking with floating window mode.
9. Works with X-431 diagnostic tools.
*EV diagnostic functions require the purchase of the EV Add-on Kit with software available.
Specification
| INPUT POWER | AC 100~240V / 50~60Hz |
| BATTERY MODULE VOLTAGE RANGE | DC 0-112V |
| BATTERY CELL VOLTAGE RANGE | 1.6~5V |
| CHARGING CURRENT RANGE | 0.5~40A, Max. Power 3.2kw |
| DISCHARGING CURRENT RANGE | 0.1-20A, Max. Power 2.4kw |
| SINGLE CELL VOLTAGE ACCURACY | 0.1%FS+5mV (Max. Range 5V) |
| SINGLE CELL CURRENT ACCURACY | 0.5%FS 0.05A (Max. Range 20A) |
| COMMUNICATION | Wi-Fi, Bluetooth |
| EQUALIZATION INTERFACE | 12PINx1+13PINx1 |
| CHARGING CONTROL | Constant Voltage Charging, Constant Current Charging |
| DISCHARGING CONTROL | Constant Voltage Discharging, Constant Current Discharging |
| CHARGE-DISCHARGE PROTECTION | Overcharge, Over-discharge, Overtemperature Protection for Battery Modules |
| REVERSE CONNECTION PROTECTION | Support |
| OVERTEMPERATURE PROTECTION | Heat Dissipation Box Overtemperature Protection at 85°C |
| MAIN DEVICE PROTECTION | Overtemperature, Overcurrent, and Current Out-of-Control Shutdown Protection |
| ABNORMAL PROTECTION | Power Line and Main Cable Power Loss |
